Ausgangslage
In Zentraltuva, Russische Föderation, wurde im Gebiet von Sajano-Susenskoe in den späten 1980er Jahren ein Staudamm errichtet, was zu einem kontinuierlich steigenden Stausee führte. (Abb. 1-2) Die Region ist aber durch zahlreiche skythische und alttürkische Gräber archäologisch sehr bedeutsam. Auch alttürkische Steinfiguren und bronzezeitliche Petroglyphen sind anzutreffen. Seit dem Dammbau wurden schon viele bronzezeitlichen und skythischen Gräber überflutet. Notgrabungen sind nur im Frühsommer möglich.

Fig. 1: Der Stausee Sajano-Šušenskoe.		Fig. 2: Stausee Sajano-Šušenskoe in Zentraltuva

Bedeutung
Seit den 1980er Jahren wurden viele skythische Gräber erforscht; es wurde aber nur sehr wenig darüber publiziert. Die alttürkischen Gräber (VI-VIII Jh. u.Z.) hingegen wurden kaum erforscht und nie veröffentlicht. Da sie etwas höher als die skythischen Gräber liegen und weiter vom ehemaligen Talboden entfernt sind, waren sie bis vor kurzem weniger gefährdet. Doch nun erreicht der jährlich steigende Wasserspiegel auch diese unerforschten Nekropolen.

Zielsetzungem
Das dringende Hauptziel ist, bis heute unbekannte Gräber aus der Türkenzeit zu entdecken und selektiv auszugraben – in erster Linie die ungeplünderten. Dabei wird man vermutlich auch bronzezeitliche Gräber entdecken. Zweitens sollen unbekannte Steinfiguren aus der Türkenzeit und bronzezeitliche Petroglyphen entdeckt und erforscht werden.

Projektleiter
Pavel Leus, Doktorand an der Freien Universität Berlin und Mitglied der Interregionalen Archäologischen Assoziation, St. Petersburg. Wissenschaftlicher Mitarbeiter des Komitees zur Erhaltung historischer Kulturgüter der Republik Tuva.

Partner:
Interregionale Archäologische Assoziation, St. Petersburg.
Komitee zur Erhaltung historischer Kulturgüter der Republik Tuva.

Bericht über die Feldforschungen im Jahr 2006 des Projektes „Archäologische Untersuchungen altürkischer Altertümer am Sajano-Šušenskoe-Stausee in Tuva (Russische Föderation)“

Pavel Leus

Dank der großzügigen Unterstützung der Gesellschaft zur Erforschung EurAsiens konnten im Sommer 2006 im Rahmen erster Feldforschungen eines Forschungsprojektes zur Untersuchung alttürkischer Fundstellen am Sajano-Šušenskoe-Stausee in Tuva (Russische Föderation) ein Survey sowie die Freilegung eines Grabhügels durchgeführt werden.

Abb. 1 Das Stausee vor dem Sajan-Tal des Enisej		Fig. 2: Stausee Sajano-Šušenskoe in Zentraltuva

Die archäologische Forschung setzte in diesem Gebiet erst viel später als in den meisten anderen Teilen Zentralasiens ein, denn das Territorium, das heute als autonome Republik Tuva bekannt ist, gehörte nicht zum russischen Zarenreich und wurde erst 1944 an die Sowjetunion angegliedert. Die ersten archäologischen Ausgrabungen fanden zu Beginn des Ersten Weltkrieges statt und wurden noch in den 1920er Jahren fortgesetzt, wobei sich das ausschließliche Interesse auf die skythischen Kurgane im Norden Tuvas richtete, wo seit dem 19 Jh. russische Kolonisten lebten.

Einen deutlichen Aufschwung bekam die Archäologie erst nach dem Zweiten Weltkrieg, als in verschiedenen Teilen Tuvas von sowjetischen Wissenschaftlern erste planmäßige Geländeuntersuchungen und Grabungen unternommen wurden. Der Bau des Sajano-Šušenskoe-Stausees war Anlass für archäologische Untersuchungen im Baugebiet, das einen großen Teil von Zentraltuva umfasste. Während der Planier- und Bauarbeiten wurden dort und im Sajan-Tal des Jenissej zahlreiche Ausgrabungen an Fundplätzen durchgeführt, die später durch das Wasser des Stausees überflutet wurden. Diese Rettungsgrabungen dauerten mehr als 20 Jahre an und waren für die skythische Archäologie von großer Wichtigkeit; ihre Ergebnisse sind jedoch nur teilweise veröffentlicht worden.

Obwohl im Zuge dieser Forschungen hunderte archäologische Denkmäler erforscht wurden, war die Zahl mittelalterlicher Kurgane dabei nur gering. Im Süden und Osten des Stausees wurden einige Komplexe mit alttürkischen und altkirgisischen Bestattungen entdeckt und freigelegt. Das nördliche und das nordwestliche Ufer sind jedoch – mit Ausnahme einer Grabung am linken Ufer des Flusses Cinge, wo in den 1970er Jahren einige frühskythische Grabhügel freigelegt wurden – bis heute unerforscht. Dieses Gebiet ist außerhalb der Frostperiode nur sehr schwer zu erreichen. Die Gipfel des Sajan-Gebirges und der Stausee lassen kaum Möglichkeiten, in dieses Gebiet einzudringen. Es bleibt nur eine Überfahrt über den Jenissej mit einer Fähre oder der schwierige Übergang über das Gebirge mit Pferden. Doch allein die Organisation von Treibstoff ist hier, weit weg von Kyzyl, der Hauptstadt Tuvas, eine äußerst komplizierte und kostenintensive logistische Herausforderung, so dass die Motorboote auf dem Stausee selten verkehren.

Im Sommer 2006 gelang es unserem Team, auf das jenseitige Ufer des Jenissej, nahe der Mündung des kleinen Zuflusses Cinge, überzusetzen und dort nach mittelalterlichen Kurganen und Steinbildnissen zu suchen. Wegen der außergewöhnlich extremen Wetterlage mit schweren Niederschlägen waren die geplanten Arbeiten aber leider nicht im ursprünglichen Rahmen zu realisieren.

Abb.3 Der Sturm aus dem Sajan-Tal des Enisej		Abb.4 Der Expeditionslager am Fluß Cinge

Damit die flussabwärts liegenden Städte Südsibiriens nicht überflutet werden, war das Wasser des Stausees dieses Jahr schon sehr hoch aufgestaut worden, so dass die meisten archäologischen Denkmäler zum Zeitpunkt unserer Ankunft bereits unter Wasser lagen.

Abb.5 Ein überfluteter Grabhügel		Abb.6 Die überflutete Mündung des Flusses Cinge

Für die Ausgrabung wurde daher ein Kurgan aus dem Gräberfeld Cinge ausgewählt. Dieses befindet sich auf der zweiten Uferterrasse des Jenissej. Es besteht aus mehr als 20 Tumuli, die in verschiedene historische Epochen gehören.

Kurgan 15 der Nekropole entsprach mit seiner Konstruktion den bereits bekannten mittelalterlichen Kurganen aus Tuva. Er besaß eine runde Aufschüttung aus Bruchstein und Geröll bei einem Durchmesser von 6 m und einer Höhe von 50 cm. Seine Basis wies keine erkennbare Befestigung aus größeren Steinen auf, was für skythenzeitliche Grabanlagen typisch gewesen wäre. Eine in unmittelbarer Nähe liegende Steinstele machte es zudem sehr wahrscheinlich, dass der Kurgan in alttürkischer Zeit angelegt worden war.

Aabb.7 Objekt 15 vor der Freilegung		Abb.8 Objekt 15 während der Grabungsarbeiten

Nach der Freilegung der Aufschüttung wurde festgestellt, dass der Hügel größer war, als anfangs vermutet. Die Basis und Teile der Aufschüttung wurden wahrscheinlich durch Muren, die von der gegenüberliegenden Schlucht niedergegangen sind, von Gesteinschutt begraben. Im Laufe der Grabung zeigte sich so, dass der Kurgan etwa 10 m im Durchmesser und ungefähr 1,1 m in der Höhe maß. Die runde Basis des Grabhügels war mit großen Steinen befestigt und von Süden her mit der Aufschüttung eines benachbarten Kurgans überdeckt. Es zeigte sich, dass es sich ursprünglich um einen frühskythischen Kurgan der so genannten Aldy Bel'-Kultur (7.-5. Jh. v. Chr.) handelte, der im Mittelalter im Zuge einer Nachbestattun g umgebaut worden ist.

Abb.9 NW-Sektor und die Basis nach der Freilegung		Abb.8 Objekt 15 während der Grabungsarbeiten

Die Ausgrabungen brachten insgesamt sechs Gräber zum Vorschein. Zwei davon, Gräber 2 und 3 befanden sich im Westen, direkt außerhalb des Befestigungsringes des Kurgans. In jedem Grab wurde eine kleine Steinkiste aus Steinplatten festgestellt, die je ein Kindergrab enthielt, das von Grabräubern völlig geplündert worden war. Eine erste anthropologische Ansprache der Knochenfunde aus den Gräbern zeigte, dass in jeder Steinkiste Kinder im Alter von 1-2 Jahren ruhten. Die Position der Verstorbenen im Befund sowie die Zusammensetzung des Grabinventars konnte nicht mehr festgestellt werden.

Abb.11 Gräber 2-3 vor der Freilegung		Abb.12 Gräber 2 und 3 (unten) nach Freilegung

Im Zentrum des Grabhügels, auf der ehemaligen Oberfläche, wurden zwei weitere Bestattungen (Gräber 1 und 4) freigelegt. Grab 1 war ebenfalls eine Steinkiste mit Überresten einer Kinderbestattung, deren Knochen sich wegen der regelmäßigen Überflutungen aber nur sehr schlecht erhalten hatten. Das benachbarte Grab 4 stellte eine mittelalterliche Nachbestattung dar. Die Knochen des Verstorbenen waren ebenfalls in schlechtem Zustand.

Abb.13 Das freigelegte Grab 4		Abb.14 Die Pfeilspitze aus dem Grab 4

Schädel und Beckenbereich waren durch die Überflutungen sowie die Last der Steinaufschüttung zerdrückt und vergangen, so dass die genaue Feststellung des Alters und des Geschlechtes nicht möglich war. Wahrscheinlich handelte es sich um die Bestattung eines halbwüchsigen Jungen, der auf dem Rücken und mit dem Kopf im Nordwesten niedergelegt wurde. In 15 cm Entfernung vom linken Ellbogen befand sich eine gut erhaltene dreiflüglige Eisenpfeilspitze. Grab 4 kann in die alttürkische Zeit, in das 6.-8. Jh. datiert werden.

Im Norden des Kurgans wurde Grab 5 entdeckt, dessen Ausgrabung in einer Tiefe von 1,4 m jedoch abgebrochen werden musste, da der Wasserspiegel des Stausees das Gräberfeld erreichte und das ansteigende Wasser sich bereits in der Grabgrube zeigte. Aus diesem Grunde wurde Bestattung 5 wieder verfüllt und auch das im Hügelzentrum entdeckte Grab 6, die eigentliche Hauptbestattung des Hügels, wurde aufgrund seiner anzunehmenden Tiefe nicht weiter freigelegt. Beide Bestattungen scheinen nicht geplündert worden zu sein, denn kein Raubschacht war zu erkennen. Die Grabungen werden hier 2007 fortgesetzt.

Abb.15 Grab 5		Abb.16 Grab 6

Die weitere Untersuchung des Ufers des Stausees im Rahmen eines Surveys zeigte eindrucksvoll, dass die Zerstörung der archäologischen Fundstellen hier in großem Maßstab und mit großer Geschwindigkeit voranschreitet.

Abb.17 Ein überfluteter Kurgan		Abb.18 Eine zerstörte skythenzeitliche Steinkiste

Am westlichen und südlichen Ufer konnten einige überflutete und zerstörte skythenzeitliche Steinkisten sowie aus Stein erbaute Grabhügel entdeckt werden.

Die Suche nach unbekannten, neuen alttürkischen Denkmälern wurde danach im Südwesten des Stausees fortgesetzt, da dieses Gebiet nicht überflutungsgefährdet und archäologisch bislang ebenfalls völlig unerforscht ist. So wurde am linken Ufer des Flusses Caa-Hol', in der Gegend von Šoluk-Hovu, ein bisher nicht bekannter alttürkischer Fundplatz mit Steineinfriedungen und Stelen entdeckt. Der Komplex von Šoluk-Hovu I befindet sich etwa 2,5 km nördlich des Dorfes Ak-Durug und 500 m westlich vom Fluss Caa-Hol'. Er besteht aus sechs viereckigen Steineinfriedungen, die sich in Süd-Nord-Ausrichtung erstrecken.

Abb.19 Fluß Caa-Hol'		Abb.20 Šoluk-Hovu, Standbild vor der Einfriedung 1

Die Einfriedungen von 1,8 x 1,8 m bis zu 3 x 3 m Größe wurden aus hochkant gestellten Steinplatten errichtet. Vor drei Anlagen (Einfriedungen 1, 3 und 6) waren – immer vor der Ostseite der Einfriedung und mit dem Gesicht nach Osten ausgerichtet – Standbilder in menschlicher Gestalt aufgestellt. Der Komplex Šoluk-Hovu I kann in die alttürkische Zeit (6.-8. Jh.) datiert werden.

Abb.21 Šoluk-Hovu, Standbild vor der Einfriedung 6

Solche Standbilder, die oft sehr sorgfältig gearbeitet wurden, sind aus verschiedenen Gebieten Zentralasien bekannt, wo sie von den meisten Wissenschaftlern mit der Epoche des Ersten und Zweiten Türkischen Khaganats in Verbindung gebracht werden. Tuva, das um 555 in das Erste Türkische Khaganat eingegliedert wurde, hat auch eine nicht geringe Zahl dieser Skulpturen, so sind dort heute etwa 200 derartige Objekte bekannt – die meisten davon im Süden und im Westen der autonomen Republik. Wesentlich mehr Standbilder wurden aber in der Mongolei, im Altaj und weiter westlich gefunden. Der Komplex von Šoluk-Hovu I erweitert das Verbreitungsgebiet dieser Art mittelalterlicher Denkmäler in Zentralasien. Der Survey wird hier 2007 fortgesetzt.

500 m östlich des Komplexes Šoluk-Hovu I, am Ufer des Flusses Cinge, wurde eine teilweise zerstörte Bestattung entdeckt. Wegen der Ausspülung des Ufers zeigten sich in der Uferböschung die Knochen eines menschlichen Skelettes, obertägig waren keine Spuren einer Grabanlage oder eines Hügels erkennbar. Es handelte sich wohl um ein Flachgrab , das angesichts der Vegetation in diesem Gebiet meist nur Dank eines Zufalls entdeckt werden kann, so sind in Tuva bis jetzt nur ein paar Flachgräber bekannt geworden. Die schwere Erkennbarkeit dieser Grabform, die nicht nur für die heutigen Archäologen, sondern auch für die früheren Grabräuber ein Problem darstellte, macht die Untersuchung der Bestattung von Šoluk-Hovu II überaus wichtig. Es kann durchaus sein, dass es sich hier um einen Teil eines Flachgräberfeldes handelt, was für Tuva eine archäologische Sensation wäre. Die Freilegung dieser Bestattung und die Suche nach weiteren Flachgräbern in der näheren Umgebung sind ebenfalls für die kommende Kampagne geplant.

Abb.22 Der Projektleiter Pavel Leus vor einem schamanistischen Kultplatz am Stausee

Im Rahmen der Feldforschungen des Projektes „Archäologische Untersuchungen alttürkischer Altertümer am Sajano-Šušensker Stausee in Tuva (Zentralasien)“ konnten 2006 neue archäologische Denkmäler verschiedener historischer Epochen entdeckt werden. Alle neu entdeckten Objekte wurden mit Hilfe eines GPS-Empfängers genau eingemessen.

Der Grabungsbericht über Untersuchungen wurde an das Institut für Archäologie der Russischen Akademie der Wissenschaften übergeben. Die neue Grabungsgenehmigung wird dem Projektleiter nach der Prüfung seines Berichtes erteilt werden. Weiterhin wurde das Komitee für Kulturhistorische Denkmalpflege der Republik Tuva über die Ergebnisse der Feldforschungen in Kenntnis gesetzt.

Pavel Leus
Doktorand der Freien Universität Berlin,
Mitarbeiter des Komitees für Kulturhistorische
Denkmalpflege der Republik Tuva
Dezember 2006

***

Archäologische Untersuchungen alttürkischer Altertümeram
Sajano-Šušenskoe-Stausee in Tuva (Zentralasien)

The grave No.9- stone cyst at the slope’s edge		The grave No.9 - the second layer of the cyst’s covering

The grave No.9 - view after cleaning off the skeleton

One hand-made and one wheel-made ceramic vessel were found at both sides of the skull. The strongly corroded remains of an iron tool (probably a knife) were discovered by the deceased’s waist.

The grave No.9 - the ceramic vessels

The necklace made from 30 beads and several pendants made of glass, bone and bronze were found at the neck part of the skeleton. The polychromatic glass pendant and a pendant made from bear’s claw are most interesting among them.
The glass pendant has analogues from the Northern Black sea region and originated from there probably.

The grave No.9 - beads and pendants		The grave No.8- bronze belt buckle with Griffins

The samples (human teeth) from the graves No. 9 and 12 were dated by the AMS-method. The dates are 1st century BC, the same as for the grave No.2 excavated in the year 2008.
An unique bronze belt buckle was found under the stones from the damaged cyst (grave No.8). It features an image of 6 griffin heads. The stylistic analogues of it are still not known.

There are several exact analogues of the bronze belt buckle with the image of the fighting among two tigers and the dragon. Those buckles were found in situ in the four graves besides several stray finds:

Made of bronze: there are twin buckles from one grave and single one in other grave. All of them were discovered in the Trans-Baikal region


The fragment of the same buckle from the Andrianov’s collection is in State Hermitage in St-Petersburg (Russia)

- the stray find, probably from Southern Siberia or Mongolia. Also two bronze buckles are in the USA. The origin of the is not known exactly but most probable is Mongolia (Bunker 1997, 274-275, No.242; Bunker 2002, No.105).

The golden buckle from the Sidorovka cemetery


The nephrite buckle from the Hotung’s collection


Made of gold: two massive casting but not open-worked buckles with incrustations from the turquoise, corals and amber were found in burial mound No.1 in the grave No.2 in Sidorovka cemetery in Omsk administrative district Bunker 2002, Fig.45).
Made of nephrite: the open-work buckle made of dark grey-green nephrite is kept in the Joseph Hotung collection in Great Britain. It’s exact origin is not known but this mineral type of nephrite is mined only in Northern Mongolia, west of the Hangai Mountains (Rawson 1995, 311-312, No.23:1; Bunker 2002, 134, No.106).



In addition, a golden fitting probably from a belt was found in the sand at the Reservoir's shore line. It might date from the Middle Ages, most probably from the Mongolian period. A bronze belt buckle of the same period was found not far from this place in 2008. It's possible to suppose that these artefacts were from a damaged grave of a noble person. They're dated c. from 13th -14th centuries.


Conclusions:
The material culture known from the Terezin cemetery is identical to the Xiongnu culture including such elements like bronze implements, weapons, ceramics. At the same time, the funeral rite is different from both classic Xiongnu and previous Scythian cultures. But it’s nevertheless possible to identify some features of the Scythian funeral rites.
The archaeological investigations of the Terezin cemetery in near future and next laboratory work could answer the question about the origin of these people. One of the most interesting aspect of the next investigations is to analyze the physic anthropology of those populations. Did they belong to an indigenous population of the Scythian age or were they newcomers or a mixed group?

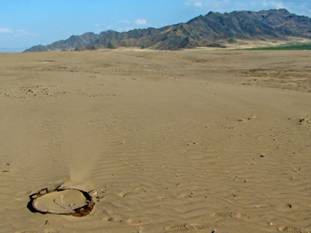

The sandy shores of the Reservoir – the Terezin cemetery

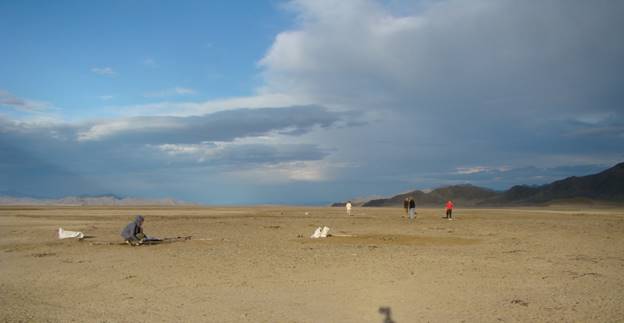

		The process of the topographical survey on the Terezin cemetery

© Pavel Leus
Project leader
28 December 2009

---

The archaeological investigations on Terezin cemetery, Tuva, in 2010
Sponsored by the Society for the Exploration of EurAsia

The archaeological investigations of Terezin cemetery in Chaa-khol district of the Republic of Tuva, Russia, were continued in spring 2010.


Fig.1 The shore of Sayan Reservoir. View from Terezin cemetery

The remains of another three cists made of stone were discovered by the shore. They’ve fallen down from the slope about ten years ago. They were marked as graves 13- 15. These three cists are located in the central, richest sector of the graveyard
An open-worked buckle made of bronze was discovered among the flat stones of the cist No.13. It represents in the style of the Xiongnu two oxen or two yaks.

Fig.2 Terezin cemetery. Grave No.13. View from NE

Fig.3 Bronze buckle from grave No.13 featuring two oxen or yaks


Fig.4 Bronze buckle from grave No.14


Two pieces of a stylistically identical buckle and an open-worked ring made of bronze were discovered among stones of the cist No.14.

Fig.5 open-worked ring from grave No 14, typical for the Xiongnu period

Various artifacts or bones were found among stones of the cist No. 15.
Parallels to the bronze buckles from graves No. 13 and 14 are known only in the Minusinsk Valley north of the Western Sayan mountains. It’s interesting that the Terezin cemetery is located at the beginning of the Sayan canyon of Enisey which is a most suitable water route to the Minusinsk Valley. Due to this waterway, so many bronze artifacts were discovered in Terezin which have parallels in the area behind the Sayan mountain range. The local population had trade connections with the population of the Minusinsk Valley and controlled this trade route.
What is important, while all such bronze buckles found in the Minusinsk Valley were chance finds, these from Terezin Graveyard are the first discovered in a scientific controlled excavation.
Also several stray finds were found on the Terezin cemetery area which were not directly related to any grave, although they were located near tombs No. 14 and No. 15: a bronze buckle like in grave No. 5, a small bronze buckle with images of oxen (it has parallels with the buckle found here at 2008), open-worked “kettle-like” pendant, as well ceramic fragments of a vessel. All of them have parallels to finds from classical sites of Xiongnu and dates to 1st century B.C.
A Chinese wu zhu coin issued by the Northern Qi Emperor Wen Xuan Di in 553 A.D. was found as well 30 m next to this central graveyard sector. This date corresponds to the time of the Ancient Turks.

Fig.6 bronze buckle		Fig.7 small bronze buckle with images of oxen
Fig. 8 open-worked “kettle-like” pendant		Fig.9 Chinese wu zhou coin from 553 A.D.

The optimal time to carry out archaeological investigations in this area is end of April- beginning of May. This is the period immediately after thawing. At that time the sand is already dry which allows to make archaeological works. At the same time the Reservoir has not been filled yet. Because of this, the fishermen and collectors/looters of artifacts haven’t reached the site yet.

Fig.9 Excavation of grave No. 13.

Local people says that somebody found artifacts here recently several times. But nobody knows where they’re now. Only a ceramic pot found here is kept in school museum in Chaa-Khol village.

Besides the works on the Terezin cemetery, the collapsing cemeteries Sume-Besh 1 and 2 were investigated. They are located on the opposite shore of the Chaa-Khol river. Two washed away burials were discovered at Sume-Besh 1 cemetery. They weren’t visible last year. It means that the collapsing of them happened during summer-autumn of 2009. In total, several dozens of the graves of the early Scythian period are known here. They partly were discovered by the Tuvinian archaeological expedition of IIMK RAS.

Fig.10 View from Sume-Besh to Terezin cemetery		Fig.11 The cist on Sume-Besh 2 cemetery

The wooden frame-work of a tomb partly washed out by water was found on Sume-Besh 2 cemetery. It dates to the early Scythian period 6th century B.C.. The human bones were visible among wooden structures and stones. The knife made of bronze was found here as well.
The stone cist partly washed out by water was found a bit downhill.

Numerous human bones, sculls were spread around this cist. The burial of the early Scythian period in situ has been discovered inside this cist.

		It was burial of the young man laying on left side with bended knees.
Fig.12 Sume-Besh 2 cemetery. Grave 1.

Fig.12 Sume-Besh 2 cemetery. Grave 1. View from East

The head oriented towards North- East. The bow and quiver with arrows was at the belt. Three arrows were made of bronze, two made of wood and one probable made of bone. Unfortunately, the wooden remains were very wet and had poor preservation because of water activity. The wooden dish and scoop were found at the face of the deceased. They were in such poor preservation, that it was impossible to save them. The bronze knife and wooden comb were found by the belt. Both of them were taken out for the restoration. Thus, the collapsing of the archaeological sites by the Reservoir shores is continuing; the objects are washed out every year.

Fig.13: Walking on the frozen lake		Fig 15. The beginning of Sayan canyon

Finally, a place already located in the Enisej-Valley was surveyed by walking over the frozen lake which was an ideal timing (that place would be later in the year either flooded or would emerge as an island, and there would be a risk, that owners of motorboats would follow.) At least 10 Scythian kurgans are already highly damaged by the water, others have disappeared. Some Bronze chance finds were made on the surface of mirrors, buckles, knives, daggers and battle axes. The pieces were handed out to the archaeological authority in Kyzyl, Tuva.


Fig 14: Chance finds at the entry to the Enisej-Valley.

Outlook 2011: It is planned to conduct the geo-magnetic prospection of the major parts of the Terezin necropolis.

Pavel Leus, Berlin, 20. 01. 2011
Collaborator in The Committee for the Cultural and Historical Preservation of Historical Monuments of the Republic Tuva

---

The archaeological expedition to the Terezin Cemetery, Tuva, in 2011

From 27 April till 5 May 2011 a geomagnetic survey was conducted at the site of the Hunnish Terezin Cemetery, situated at the southern shore of the Sayano-Shushenskaya dam lake. The survey was conducted by A.V. Chudin from the St. Petersburg State University, Faculty of Physics, Department of Quantum Magnetic Phenomena.

The objective was to determine borders and structures of the total burial site of Terezin by finding in situ graves (stone chests), stemming most probably from the Hunnish period. The ca. 1 km long graveyard is covered by sand. 7 places amounting to a total surface of 1 hectare were explored.

Unfortunately the whole magnetic search failed to reveal any significant anomaly in the surveyed terrain, no further tomb was found. As a hypothesis, the chosen method of this magnetic survey was not appropriate to the specific properties of the terrain.

For further information, please refer to the full report (PDF).

East of Terezin a few above-the-ground stone chests and 4 already flushed-out kurgans from the Kyrgyz period (9th-10th century CE) were found. The geographical coordinates were given to archaeologists from St. Petersburg who conducted there in summer a rescue excavation and found in and next to one of these 4 kurgans numerous arrow heads, bronze and silver belt plates and pieces of horse-gear. The owner of this tomb was probably a wealthy warrior. Finally a single, large medieval iron cauldron was found in the dunes.

A medieval iron cauldron in situ	Flushed-out stone chests

Conclusion
We will further analyze the report from the magnetic survey in order to understand why it failed to identify any significant anomaly in the searched terrain. In view of the rich accidental previous finds and discoveries, it seems unlikely that the graveyard of Terezin would be already empty and all tombs would have been identified. In this process we will consult external experts in the field of geomagnetic prospection before reaching a conclusion how to further proceed.

Publication
In 2011 Pavel Leus published a comprehensive and illustrated report entitled “New Finds from the Xiongnu Period in Central Tuva. Preliminary Communication” in Volume 5 of the “Bonn Contributions to Asian Archaeolgy”, edited by Ursula Brosseder and Bryan K. Miller.

Please refer to the PDFs of the contribution as well as of the preface to the volume and its complete Bibliography here below:

Xiongnu_References_Glossary_Authors (PDF)
Xiongnu_Contents_Foreword_Preface (PDF)
Leus Xiongnu in Tuva (PDF)


Christoph Baumer, 29. 03. 2012

---

Validation of the geomagnetic survey and completion of the project

Following the negative results from the geomagnetic survey conducted by the St. Petersburg State University, Faculty of Physics, Department of Quantum Magnetic Phenomena, all data were re-analyzed in 2012 by the Bavarian Archaeological Survey, Section of Geophysics, Munich. This second analysis confirmed the overall negative results and came to the conclusion that the specific mineral composition of the sand dunes stretched over the graveyard of Terezin would not allow for better results, irrespective of the chosen methodology. Therefore the Bavarian Archaeological Survey couldn’t recommend conducting a second survey using another technology.

In view of the huge size of the necropolis where the visible above-the-ground tombs have been investigated by the Society’s previous expeditions and that excavations without visible guidance are not feasible, it has been decided to close the project. In two to three years the site will be re-checked, in the meantime a final report is due to be established.

C. Baumer

---

Ala-Tey: New archaeological findings from the Xiongnu period in Tuva, 2015

Pavel Leus, Berlin


In late May and early June 2015, a group of the TAE , St. Petersburg, performed an archaeological field survey at the Sayano-Schuschensker Reservoir in Central Tuva (Russia). Archaeological objects were prospected far from the shore line, which remain below the water surface of the reservoir for almost the entire year. Flooded from around the end of June to early July, the area is only free of ice, snow, and condensation again in mid- to late May.

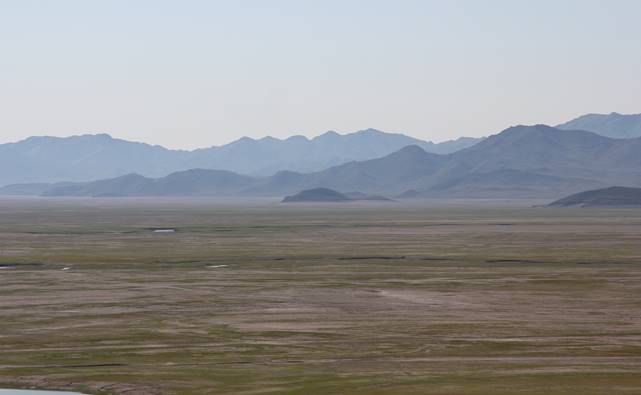

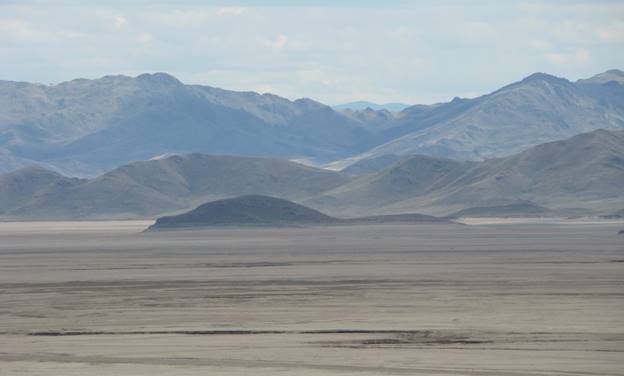

Fig.1 Reservoir bed in the research area.

During the field survey of the isolated mountain Ala-Tey (translated from Tuvian as "Colorful Mountain"), portions of the burial sites (so-called stone boxes) were found to be partially exposed. They recalled the stone boxes of Xiongnu period that were discovered a few years ago at the Terezin burial ground about 4.5 km away.

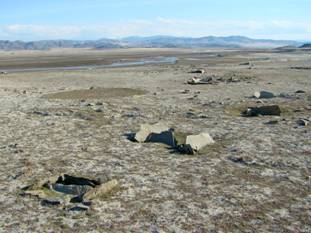

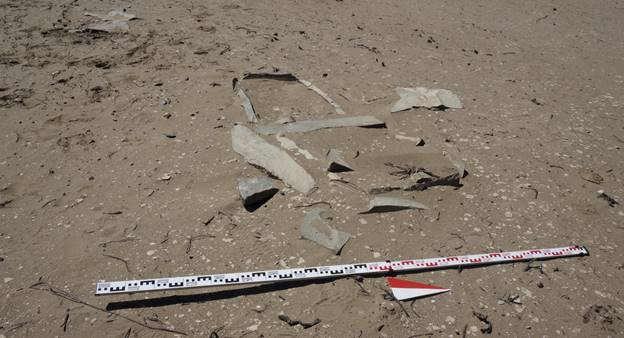

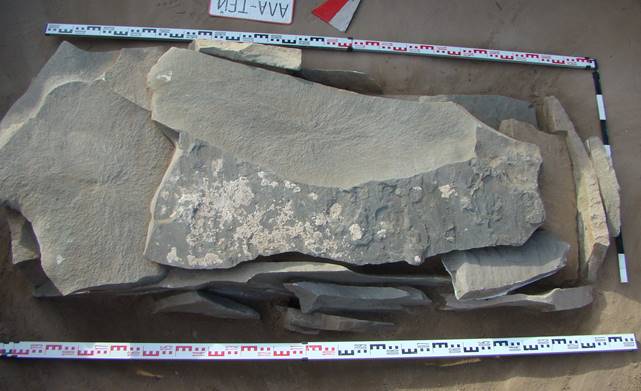

Fig.2 One of the exposed stone boxes.

This area is usually flooded again with the water of the reservoir around late June to early July. The burial sites are then 20 meters below the water level.


Fig.3 When the reservoir is filled up, the research area is beneath the water.

A total of 15 graves were exposed, which – extraordinarily – proved to be fully intact. Thanks to the archaeological findings, it is possible to provisionally date them all to the Xiongnu period (approx. 1st century BC.). A more precise estimate, however, will not be possible until the planned AMS dating.


Fig.4 Excavations at Ala-tey

Three AMS dates have already been obtained for the Terezin graves, which clearly date the grave sites there to 1st century BC. As the two burial grounds show many parallels in the burial rites and the archaeological findings, we suspect a similar dating for the graves of Ala-Tey.

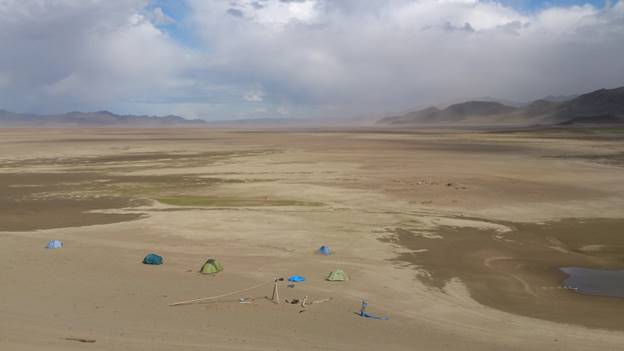

Fig.5 Expedition camp on the reservoir bed

The Ala-Tey burial ground forms a compactly situated group of juxtaposed flat graves with different grave constructions and placements of the dead. There are graves in stone boxes made of stone slabs, where the dead were laid in a stretched supine position or with bent legs. Furthermore, there are graves in wooden coffins made of boards (?), with and without a stone framework. Most stone boxes could already be seen from above, as they were constructed in barely sunken sand pits. As a result, some cover slabs were exposed.


Fig.6 An exposed grave in a stone box. Ala-Tey

The archaeological findings from Ala-Tey have parallels to other Xiongnu-period burial grounds, not only in the nearby Terezin burial ground, but also in Transbaikalian, the Minussinsk Depression, northern China and Mongolia.

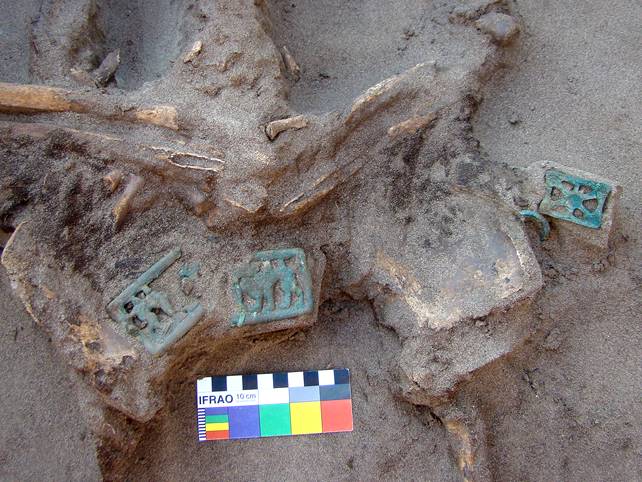

In Grave 11 from Ala-Tey, for example, there are beautiful openwork bronze plates and rings from a belt set, a large openwork belt buckle showing two yaks, and a bronze mirror, which resembles some Chinese mirrors from the Han Dynasty (including the mirrors of Terezin).

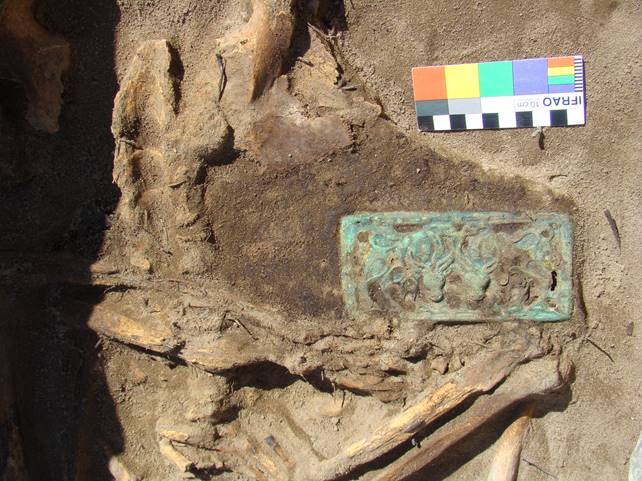

In Grave 12 from Ala-Tey, besides the openwork bronzes, the belt plates of argillaceous shale were also found, and, in between them, a very rare artifact inlaid with coral and turquoise beads (?). Such argillaceous shale plates are known from the trans-Baikalian burial grounds of the Xiongnu period, e.g. from the burial ground of Ivolga.


Fig.7 An exposed grave in a stone box. Ala-Tey

In comparison to Terezin, it is interesting to note that only handmade ceramics have been encountered so far at Ala-Tey, not those made on the rapidly rotating wheel.

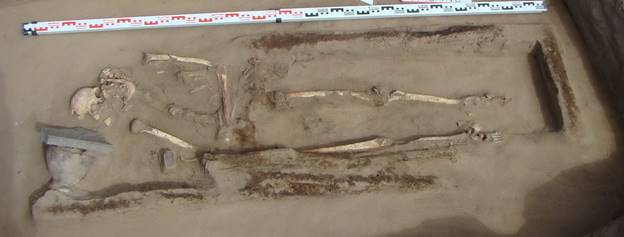

Fig.8 An exposed grave in a wooden coffin. Ala-Tey.

From an anthropological perspective, the people buried at Ala-Tey also seem to be different. This, however, can only be clarified after the intended in-depth anthropological examination. It is possible that not only the immigrant Xiongnu were buried there, but also the local post-Scythian population.

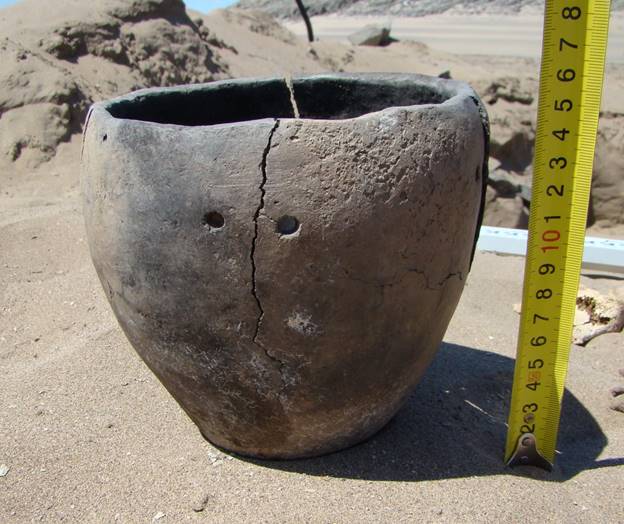

Fig.9 A handmade pot with repair site. Ala-Tey.

Next year, the field research will continue at the Ala-Tey burial ground.
A brief survey was also carried out this year at the Terezin burial ground. In some places, the recent extensive deterioration to the shoreline was discovered. Along with some human bones, a fragment of the ornamental bronze mirror was found on the shore. Another extensive exploration of the area has been planned for the coming year.

July 6, 2015

New excavations of the Xiongnu's epoch burial ground Ala-Tey in Tuva in 2016
(download here)

Pavel Leus

With the support of the "Society for the Exploration of EurAsia” an unknown burial ground from the Xiongnu period, named Terezin, was discovered in Central Tuva in 2007. This archaeological site was about to collapse due to the natural erosion provoked by the Sayan-Shushenskoe hydrostation reservoir and its annual rising water level. During its research we have manage to identify and locate 15 burials, including several intact ones. In the burials and around the already destroyed stone constructions, rich funeral inventory was discovered, including typically Xiongnu weaponry and bronze details of belts, items imported from China – a fragment of Han' bronze mirror for example. Large openwork bronze belt buckles belong to the most interesting findings because of parallels among Xiongnu period sites of the neighboring areas: the Minusinsk Basin, Transbaikalia, Mongolia, Ordos and others. (Fig. 1)

 Fig 1. Xiongnu’s period cemetery of Terezin and some excavated artefacts

Such buckles were so far unknown in Tuva, except one from the Urbiun cemetery at the confluence of Chaa-Hol' river and Yenisei, only 6 kilometers away from Terezin burial ground.

In that area there is also another burial ground called Aimyrlyg located 10 kilometers upstream the Chaa-Hol' river. About 200 burials were excavated by E.Stambulnik in the 1970-80s , some belong to the Xiongnu period (up to now the excavations data has not been published, precise dating of most of the burials is impossible). About 40 kilometers up the Yenisei river valley, near the town of Shagonar, big mounds of the Xiongnu's nobles were discovered and excavated by A.Mandelshtam in 1965-66 and 1976-77, resembling the burials of Noin-Ula in Mongolia. Unfortunately those in Tuva were heavily looted.

Overall, there are several sites of the Xiongnu period in this part of Ulug-Khem basin besides Terezin, but most of them were looted in the past, or the funeral inventory was rather poor. Dating of those sites also remained relative. This part of Ulug-Khem basin at the entrance to Sayan canyon is strategically an important area: here begins the way across the Sayan ridge to the Minusinsk Basin; moreover the largest and best pastures in Central Tuva were situated here. This is also the reason why numerous archeological sites, which belong to the Bronze Age, times of Scythians, Xiongnu and ancient Turks (settlements, fortresses and burial grounds), are all concentrated in this part of the valley. (Fig. 2)

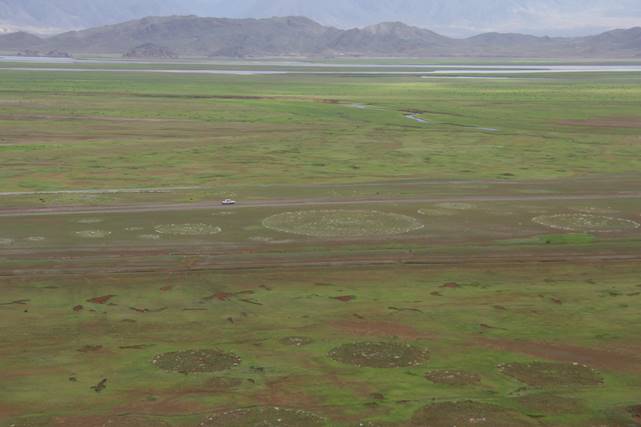

Fig. 2 Part of the Scythian’s time cemetery on the reservoir floor, before flooding

At the beginning of the 20th century Chaa-Hol' village was the most important trade center in Tuva, later this settlement had been moved to another place because of the flooding zone. Control of this area was an important task during all historical periods, so a detection of the Xiongnu period sites, was not a surprise. The main problem is however that the central part of this territory is covered with water of the Sayan-Shushenskoe hydrostation reservoir. (Figs. 3, 4).

The difficulty of finding flat graves in the flooding zone is that time for archeological work is here very limited. Snow melts at the end of April-beginning of May, and only when the smelting water left it is possible to start working. By the middle of June the water of reservoir raises and the main area of investigation is flooded again and inaccessible for researchers until the following year.

Fig. 3 The reservoir floor at the beginning of June

Fig. 4 The reservoir at the beginning of July, after flooding

In 2014 our expedition managed to find another untouched burial ground of the Xiongnu period – called by the name of the nearest cliff: Ala-Tey. This cemetery is situated 4,5 kilometers from Terezin, on the flooded part of the steppe where excavations are only possible 3-4 weeks within one year. When full, the surface of the Sayano-Shushenskoe reservoir is 540 meters above  mean sea level, while the Ala-Tey cemetery lies at 523 m AMSL, hence it lies almost 20 meters below the water surface.

During the 2015 expedition objects 1-15 were excavated (s. report 2015). The upper layer of soil was washed away by the reservoir as well as the upper stones of a few funeral stone boxes. To date there are 33 objects excavated here, mostly containing untouched burials of Xiongnu. (Fig. 5)

Fig. 5 Excavation of the Ala-Tey cemetery, before flooding

The excavations at the Ala-Tey cemetery were continued in 2016. The expedition lasted from 03 June to 18 June 2016. In this year, the Sayano-Shushenskoe reservoir filled up with water somewhat earlier, so that by 17 June the water had already come quite close the excavation site.

Objects 16-33 were discovered and exposed during the excavation. Objects 17-33 are flat graves, Object 16 is not a grave, merely a pair of small stone panels lying in a shaft.

The deceased had been deposited in the excavated graves in supine extended position. Double burials were found in four of the graves: 2x2 adults, 1x 2 children (a stone cist  atop the other in a burial pit), 1x mother and child.

There are several types of burial constructions – stone boxes – (Figs. 6-7), often built in two levels (like in the burial # 9 from Terezin), burials in narrow pits (where the contours of burial pits are impossible to track as since the end of the 1980s this sandy landscape is at the bottom of the water reservoir most time of the year), overlaid with stones or stone tiles. Those constructions are usually rectangular (in one case – boat-shaped – (Fig.8), sometimes we could notice remains of a wooden frame inside (maybe a coffin, but due to the regular water erosion, the condition of the wood is either extremely bad or there are no remains at all).

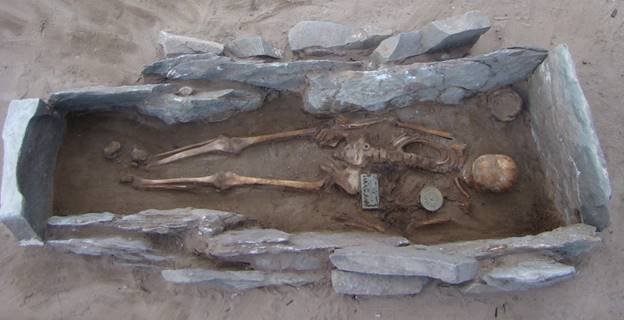

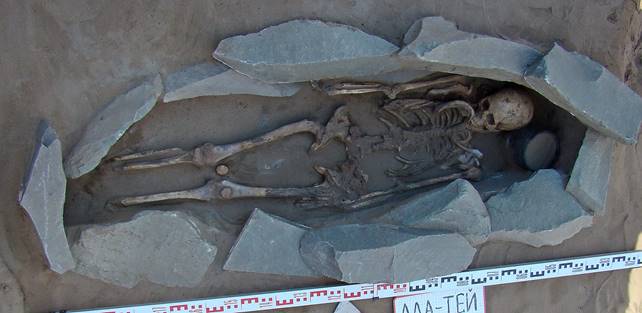

Fig. 6 Cist grave

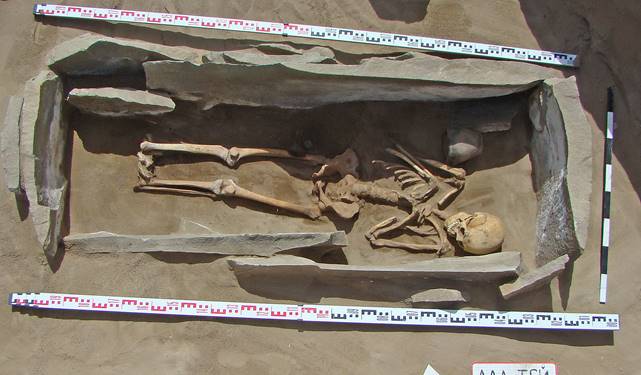

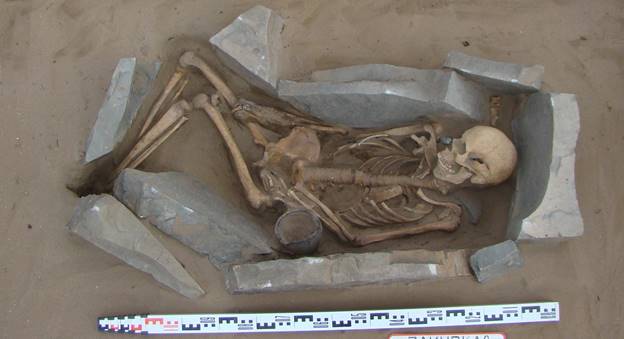

Fig. 7 Cist grave

Fig. 8 „Boat-shaped” stone burial construction

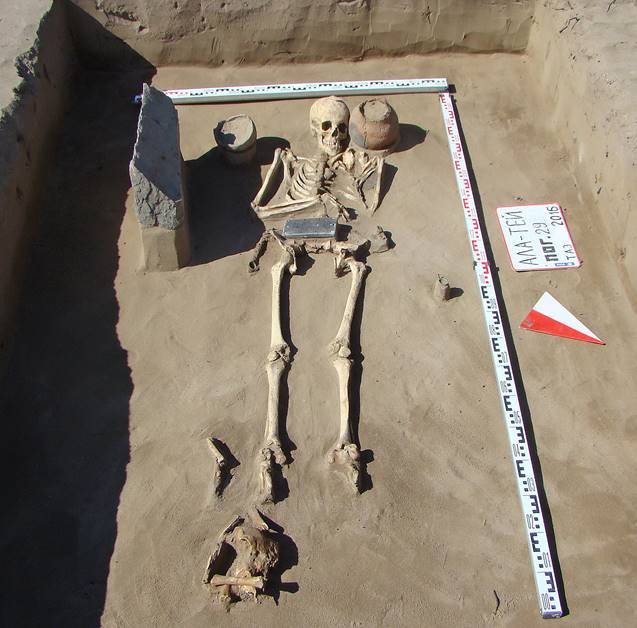

There are also graves without any burial constructions – (Fig. 9), which could have been wooden and did not survive.

Most of the skeletons lay in supine position like in the burials of Xiongnu in Transbaikalia and Mongolia, also in the burials of the Tes’ culture of Minusinsk Basin. In few instances the deceased was buried on the back with the legs bent. There were pot-shaped molded vessels standing in all the burials beyond the deceased’s head. No weaponry was recovered, but several belt and cloths’ decorations, necklaces, pendants and earrings, local copies and imports of Chinese mirrors and fragments were excavated.

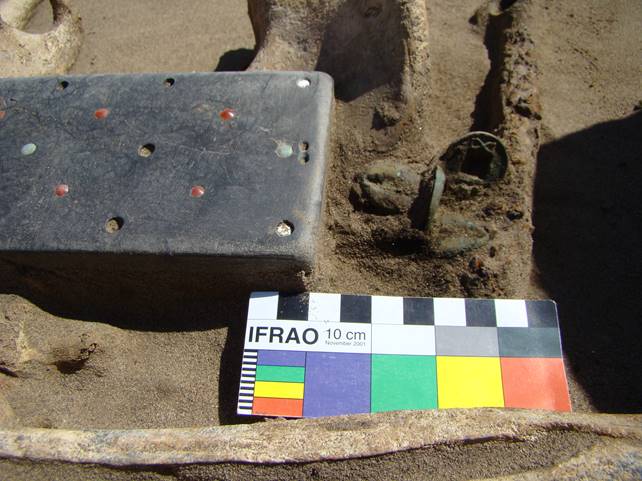

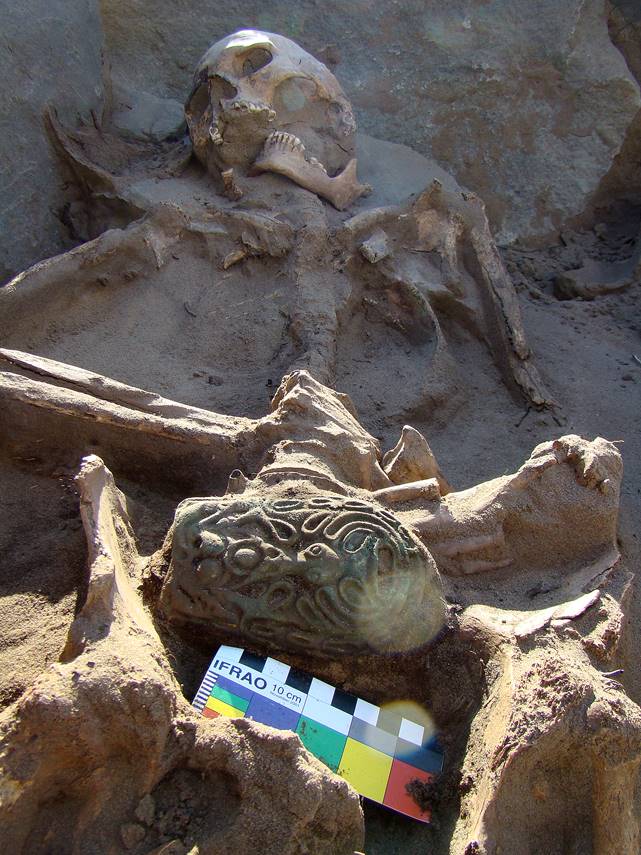

Fig. 9 Grave without burial construction, with a stone belt buckle with insets of coral, turquoise and mother of pearl.

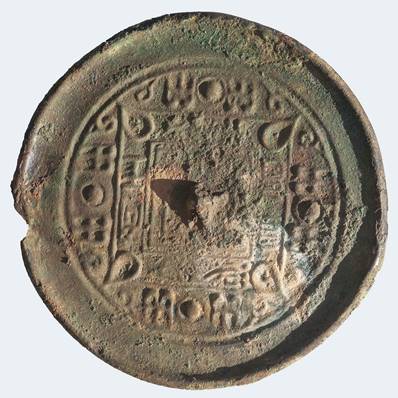

There was also an intact bronze mirror in one of the burials with an inscription in Chinese: “When I look at the sky, I always think about the ruler” (Fig. 10). A similar mirror is kept in the Minusinsk museum. In two of the burials, belts were found, decorated with bronze models of cowrie’s shells and wu zhu coins – (Fig. 11), which provide a terminus post quem – 118 B.C. – the first year when such coins appeared into circulation in China.



Fig. 10 Chinese bronze mirror with inscription

Fig. 11 Chinese Wu Zhu coins, bronze models of cowries shells and buckle with insets of coral, turquoise and mother of pearl.

Openwork bronze belt buckles made of different types, found in the Terezin and Ala-Tey cemeteries, present themselves as masterpieces of the metal art casting and attract a great interest. Firstly we should mention large plaques with the image of two yaks walking towards each other (for now we have found 4 such buckles – 2 in Terezin, 2 in Ala-Tey) – (Fig. 12). Their massive bodies are decorated with drop-shaped patterns, representing fur and four legs with hooves. The heads are depicted en face with horns, nostrils and “bulging” eyes. Notched relief on the back shows the mane. The frame of the buckles is designed with set-in rectangles, as well as drop-shaped ones for colored insets. Such large belt plaques with the image of two opposing bulls or yaks are known, mostly on the territory of the Minusinsk Basin, where several intact buckles and their fragments were found (totally 19 examples), in the main those are casual findings. Another such buckle, likely comes from Inner Mongolia, and a pair of buckles from the burial ground of Early Han' dynasty on the north-east of Liaoning Province in Manchuria. We obtained an absolute date for one of the burials with such buckle on Ala-Tey – 2092 +\- 27 BP.


Fig. 12 Openwork bronze belt buckle with two yaks

A unique large buckle with an en face depiction of a bull was found on Ala-Tey – (Fig. 13). Ears and horns are shown with drop-shaped patterns, the muzzle is long with opened mouth, “bulging” eyes, the body seem shortened and stretched also en face. It is difficult to grasp the pattern design because all surface of buckle is covered with leaf and drop-shaped indentations.

Fig. 13 Large belt buckle with depiction of a bull or yak

A belt buckle with the image of two Bactrian camels was found in one of the Ala-Tey burials – (Fig. 14). Although buckles with camels have been found in the monuments of Mongolia and the Ordos, we have found no direct analogies for this buckle from Ala-Tey.

Fig. 14 Belt buckle with two Bactrian camels

Because all the burials in Ala-Tey were intact, we were able to identify the construction of belts, which were an important part of the ancient nomad's dress. A series of belt plaques made of shale and decorated with color insets is quite interesting. There are small plaques, which probably served as analogy to the small bronze belt plaques and large ones – analogies of large belt buckles. We found also a stone plaque that is drilled so it could be attached to the belt. This big buckle from Ala-Tey has the impressive size 19x9 cm, and is decorated with insets of coral, turquoise and mother of pearl – (Figs 9, 11). Undoubtedly a prestige item, which belonged to a man of high social status. Such plaques are well known from Transbaikalia but in most cases they are damaged and the color insets are lost.

It is notable that the women’s graves have relatively rich grave goods (e.g. bronze mirror, earrings  made of gold and bronze, openwork belt plaques, Wu-Zhu coins, etc.) By contrast, grave goods in the men’s graves are fairly scanty, aside from ceramic pots they only occasionally feature smaller objects made of iron.

There are no items executed in Scythia-Siberian animal style in the burials of Xiongnu in Tuva, since in the late Scythian burials there are no such stone belt buckles with fishnet pattern. We meet only single items, which could be referred to Xiongnu. Although some of these monuments coexist, because some late Scythian burials could be dated to the 1st century B.C. At the same time, Scythian funeral rites with placement of bodies with the legs bent into stone boxes exist on the burial grounds connected with the Xiongnu, like in Terezin or Ala-Tey.

Presumably, these people in Central Tuva who settled in a key location at the entrance of the Yenisei River to the Sayan canyon, had close contacts with the Xiongnu of Mongolia and Transbaikalia and also with the Tes’ culture of the Minusinsk Basin. Along with them, the last bearers of the late Scythian culture existed here. We think that with the expansion of the Xiongnu Empire an assimilation of the Scythian culture took place and as a result of a merging process, both cultures disappeared, or transformed into the Kokel’ culture.



19 March 2017

Excavations of the Cemeteries of Ala-Tey and Terezin in Tuva in 2017

In 2017 the Tuvan Archaeological Expedition of IHMC RAS (St.Petersburg, Russia) continued the excavations at the cemetery of Ala-Tey.



Fig.1 Excavation of the cemetery of Ala-Tey in 2017

The excavation was scheduled to take place over the course of one month, from the 20th of May to the 20th of June, when the meltwater had already drained away and the filling of the Sayano-Shushenskoye Reservoir had not yet started. For technical reasons the filling of the reservoir was delayed for two weeks this year so it was decided to continue the excavations until the reservoir was filled, which occurred on the 3rd of July.



Fig.2 The cemetery of Ala-Tey during flooding

The area excavations included the objects excavated in the previous years to make sure no blind-spots were left within the territory of the cemetery. The majority of the objects previously excavated were located at shallow depths or even on the surface, so the contours of the grave pits were untraceable. The regular submersion of the cemetery has resulted in mixture of the upper layer of sand which also makes tracing the contours impossible there. In 2017 we started the excavation of the graves located at a depth of 1 – 1.5 meters, sometimes 2 meters. In many cases it became possible to trace the contours of the grave pits.



Fig.3 The contours of the grave pits

During the 2017 excavations, 53 new objects were discovered. Thus the total number of objects found at the cemetery of Ala-Tey increased to 86. Most of the objects were excavated; a few were conserved for next year’s excavations.

Fig.4 Excavated graves at Ala-Tey

The excavation area tends to expand, and the discovery of new objects is expected next year. All the Ala-Tey finds are currently kept in IHMC RAS (St. Petersburg) for scientific research and restoration. Subsequently they will be sent to the National Museum of the Republic of Tuva.
All of the graves excavated this year belong to the Xiongnu period and date to the 2nd-1st centuries BC.



Fig.5 Burial in wooden coffin with stone siding

The graves revealed several types of burial rituals. Most of the burials are made in large rectangular or occasionally boat-shaped stone boxes or in wooden coffins or frames with stone siding. There are also burials without any grave structure. The orientation of the deceased varies; most are oriented south-west and north-west. The burials are generally individual, rarely paired.



Fig.6 Individual burials

Most of the dead were interred in an extended supine position, in some cases lying on one side with the legs flexed. Men’s arms are usually laid by their sides; women have their arms crossed over the pelvis or chest, some have the left arm flexed with the hand towards the left shoulder.



Fig.7 Burial with bronze belt buckle and Chinese mirror

The most interesting and rich grave goods were deposited in women's graves. What captures the attention first is the central element of the belt set: large belt buckles depicting animals, e. g. bulls, camels, horses, and snakes. Most often these are openwork buckles depicting a pair of yaks or bulls; 5  such pieces have been found to date at the cemetery of Ala-Tey (plus two pieces at the cemetery of Terezin). In some cases the wooden base to which the buckle was attached has also been preserved.
In women’s burials we found bronze mirrors, both entire and in fragments. Most of them are original Chinese mirrors of the Western Han period (2nd - 1st centuries B.C.) or local copies of such mirrors, some with a Chinese hieroglyphic inscription “When I look at the sky, I always think about the ruler”. Fragments of two earlier Chinese mirrors belonging to the preceding period of Warring States - a mirror with T-shaped symbols and a mirror with a pattern of zigzag rhombi and spirals - were found last year. As yet no mirror of the Eastern Han period (1^st - 2^nd  centuries B.C.) has been discovered here.



Fig.8 Burial with stone belt buckle

Fig.9 Stone Belt Buckle with inlays



Fig.10 Engraved Stone Belt Buckle

In some women’s graves there were beads of different types and materials and earrings of golden and bronze wire.

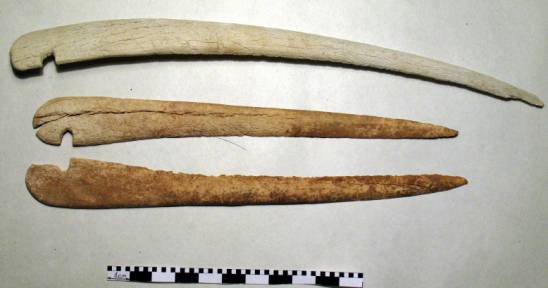

In men’s burials we found mainly iron artifacts - belt buckles and shoe buckles, knives, iron rings and hooks. In two burials two bone plates from composite bows of the Xiongnu type were found. No other weapon has been discovered to date. Bronze spoon-shaped strap-ends decorated with zoomorphic or geometric patterns should be considered part of the men’s belt set.
In two burials (one woman’s and one man’s) horse skulls were found situated near the legs of the interred. One of the skulls (from the man’s burial) was bridled, the bridle consisted of iron with bronze details.



Fig.11 Man’s Burial with a horse scull

The cemetery yielded a wide range of various ceramic vessels. These are mainly jar-shaped pots, but there are wheel-thrown vases with vertical polishing as well. On the former ground surface above some of the burials (or on the edge of the grave pits) standing shallow vessels divided into two compartments with a hole in the middle of the partition were found.

Fig.12 Pottery from the cemetery of Ala-Tey

Many of the items from the cemetery of Ala-Tey have analogies at the Xiongnu sites of Trans-Baikal, Mongolia, Northern China, also in Minusinsk Hollow and Altai.
This year we inspected the bank of the reservoir at the cemetery of Terezin and discovered a burial of the Xiongnu period, parts of which had fallen down from the precipice. Among the grave goods there were two ceramic vessels, one of which was a typical Xiongnu vase. A noticeable layer of bronze oxides covered the bones of the pelvis, probably from a big belt buckle. The buckle was absent; it may have been removed by local residents, who had discovered the burial before we did.

Fig.13 Xiongnu period grave from the cemetery of Terezin

The excavation of the cemetery of Ala-Tey and the inspection of the Terezin cemetery area in 2017 yielded a vast amount of new material and showed the necessity for further research at these locations. It is essential to create a detailed map of the reservoir area using modern technology and aerial photography. It is necessary to check the archives in Moscow and Saint-Petersburg to collect data regarding the objects previously excavated in this area and compare this to the contemporary situation. Further excavations on a regular basis in the submerging area and on the banks of the reservoir are required. Every year new burials are exposed and consequently destroyed due to the impact of the water and hurricanes.
Three research articles on the Ala-Tey and Terezin finds are to be published at the end of 2017.

Pavel Leus
Independent researcher, Berlin/St.Petersburg



Selected Bibliography





| copyright by The Society for the Exploration of EurAsia| E-mail | Home |
